Radiator & Components for 2024 Toyota RAV4 Prime

Vehicle

2024 Toyota RAV4 Prime

Change Vehicle

Categories

Cooling System
Cooling System
Browse Categories

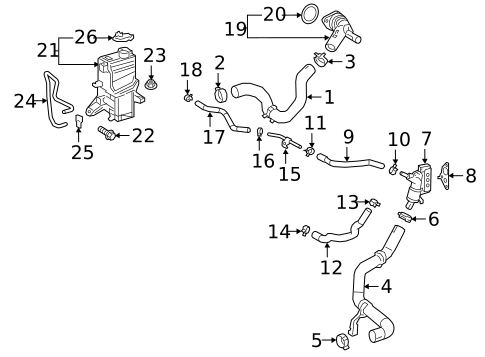

Radiator & Components for 2024 Toyota RAV4 Prime #0 Radiator & Components for 2024 Toyota RAV4 Prime #1 Radiator & Components for 2024 Toyota RAV4 Prime #2
Radiator & Components for 2024 Toyota RAV4 Prime #0
10
11
12
13
14
15
16
17
18
19
2
20
21
22
23
24
25
26
3
7
8
9
No.
Part # / Description / Price
Price
2
9046639002 - Cooling System: Upper Hose Clamp for Toyota: Avalon, Camry, Highlander, Mirai, RAV4, RAV4 Prime, Venza Image
Radiator Hose Clamp
9046639002
Toyota Toyota
Description: Plug-in, reservoir & hoses, type 1. Engine Cooling. At Radiator. Exc.Japan Built.
View Details
View Details
3
90466A0037 - Cooling System: Upper Hose Clamp for Toyota: Avalon, C-HR, Camry, Corolla, Corolla Cross, Grand Highlander, Highlander, Prius, Prius AWD-e, Prius Prime, RAV4, RAV4 Prime, Sienna, Venza Image
Radiator Hose Clamp
90466-A0037
Toyota Toyota
MSRP $7.64
$5.97
MSRP $7.64
$5.97
7
1633125030 - Cooling System: Water Outlet for Toyota: Avalon, Camry, Crown, Crown Signia, Grand Highlander, Highlander, RAV4, RAV4 Prime, Sienna, Venza Image
Water Outlet
16331-25030
Toyota Toyota
Notes: PARTS: Part has related component that cannot be reused/reinstalled; o-ring.
MSRP $67.69
$45.98
MSRP $67.69
$45.98
7
1635125040 - Cooling System: Engine Coolant Outlet Flange for Toyota: Avalon, Camry, Crown, Crown Signia, Grand Highlander, Highlander, RAV4, RAV4 Prime, Sienna, Venza Image
Engine Coolant Outlet Flange
16351-25040
Toyota Toyota
Description: Location-Engine Cylinder Head. 2.5L. Thermostat & hoses. Venza.
MSRP $52.04
$35.36
MSRP $52.04
$35.36
8
16341F0010 - Cooling System: Water Outlet Gasket for Toyota: Avalon, Camry, Crown, Crown Signia, Grand Highlander, Highlander, RAV4, RAV4 Prime, Sienna, Venza Image
Water Outlet Gasket
16341-F0010
Toyota Toyota
Notes: PARTS: Part cannot be reused/reinstalled.
Description: Without hybrid, reservoir & hoses. 2.5L. Us built, thermostat & hoses. Location-Engine Block. Plug-in, reservoir & hoses. Japan built, thermostat & hoses.
MSRP $5.31
$4.15
MSRP $5.31
$4.15
8
16345F0020 - Cooling System: Engine Coolant Outlet Gasket for Toyota: Avalon, Camry, Crown, Crown Signia, Grand Highlander, Highlander, RAV4, RAV4 Prime, Sienna, Venza Image
Engine Coolant Outlet Gasket
16345-F0020
Toyota Toyota
Description: Location-Engine Cylinder Head. 2.5L. Thermostat & hoses.
MSRP $5.31
$4.15
MSRP $5.31
$4.15
9
1629725020 - Cooling System: By-Pass Hose for Toyota: Avalon, Camry, Crown, Crown Signia, Grand Highlander, Highlander, RAV4, RAV4 Prime, Sienna, Venza Image
Hose
16297-25020
Toyota Toyota
Description: 2.5L, #8. Engine Cooling. Outlet Flange to Pipe. Toward Filler Neck. Thermostat & hoses, #9. #1. Plug-in, reservoir & hoses. Thermostat & hoses, #8. #7.
MSRP $9.63
$7.53
MSRP $9.63
$7.53
10
9613841501 - Cooling System: By-Pass Hose Clamp for Toyota: Corolla Cross, GR Corolla, RAV4, RAV4 Prime, Sequoia, Tacoma, Tundra Image
By-Pass Hose Clamp
96138-41501
Toyota Toyota
Description: Left side, by-pass hose #4, #2. Without hybrid, reservoir & hoses, type 2. Tubes and hoses. 2.0L reservoir & hoses. rear. 2.0L. by-pass hose #3. Plug-in, reservoir & hoses, type 1. By-pass hose #1.
MSRP $4.47
$3.50
MSRP $4.47
$3.50
11
9046715022 - Cooling System: By-Pass Hose Clamp for Scion: tC | Toyota: Camry, Celica, Corolla Cross, Mirai, Prius, Prius Plug-In, RAV4, RAV4 Prime Image
By-Pass Hose Clamp
90467-15022
Toyota Toyota
Description: Without hybrid, reservoir & hoses, type 1. Type 6. Us built, radiator & hoses, rear. Radiator & hoses, rear, to 02/2021. #2. Gt, upper. Gt-s, large.
MSRP $2.48
$1.94
MSRP $2.48
$1.94
12
1629525010 - Cooling System: Heater Hose for Toyota: Avalon, Camry, Crown, Crown Signia, Grand Highlander, Highlander, RAV4, RAV4 Prime, Sienna, Venza Image
Hose
16295-25010
Toyota Toyota
Description: Without hybrid, reservoir & hoses. Engine Cooling. Housing To Pipe. Thermostat & hoses, #8. Plug-in, reservoir & hoses. Thermostat & hoses, #7. #6.
MSRP $27.42
$19.13
MSRP $27.42
$19.13
13
90466A0029 - Cooling System: Heater Hose Clamp for Toyota: 4Runner, Avalon, bZ4X, C-HR, Corolla, Corolla Cross, Mirai, Prius, Prius Prime, Prius V, RAV4, RAV4 Prime, Sequoia, Tacoma, Tundra, Venza Image
Engine Coolant Reservoir Hose Clamp
90466-A0029
Toyota Toyota
MSRP $7.14
$5.58
MSRP $7.14
$5.58
14
90466A0015 - Cooling System: Heater Hose Clamp for Toyota: Avalon, Corolla Cross, Mirai, Prius, Prius Prime, RAV4, RAV4 Prime, Sequoia, Tundra Image
By-Pass Hose Clamp
90466-A0015
Toyota Toyota
MSRP $4.31
$3.37
MSRP $4.31
$3.37
15
1627925020 - Cooling System: By-Pass Pipe for Toyota: Camry, Crown, Crown Signia, Grand Highlander, Highlander, RAV4, RAV4 Prime, Sienna Image
By-Pass Pipe
16279-25020
Toyota Toyota
Description: 2.5L, #3. Thermostat & hoses, #3. Plug-in, reservoir & hoses. #4.
MSRP $17.11
$11.94
MSRP $17.11
$11.94
16
9613851701 - Cooling System: By-Pass Pipe Clamp for Toyota: Camry, GR Corolla, RAV4, RAV4 Prime Image
Clamp
96138-51701
Toyota Toyota
Description: Us built, radiator & hoses, rear. Radiator & hoses. rear from 02/2021. Plug-in, reservoir & hoses. Reservoir & hoses, hose #1, upper.
MSRP $4.47
$3.50
MSRP $4.47
$3.50
17
1628225100 - Cooling System: Connector Hose for Toyota: RAV4, RAV4 Prime Image
Connector Hose
16282-25100
Toyota Toyota
Description: Plug-in, reservoir & hoses.
MSRP $11.13
$7.76
MSRP $11.13
$7.76
18
90466A0032 - Cooling System: Connector Hose Clamp for Scion: tC | Toyota: C-HR, Camry, Corolla, GR Corolla, Mirai, RAV4, RAV4 Prime, Sequoia, Tacoma, Tundra Image
Clamp
90466-A0032
Toyota Toyota
Description: Without plug-in, #1. Primary. 3.5L, radiator & hoses. Vapor hose #4. Plug-in, reservoir & hoses. Reservoir & hoses, hose #1, lower. Hatchback, reservoir & hoses, 2020-24. Reservoir & hoses, 2019, #2. Radiator & hoses. front. Vapor hose #1.
MSRP $4.64
$3.63
MSRP $4.64
$3.63
19
1603125040 - Cooling System: Thermostat Housing for Toyota: Avalon, Camry, Crown, Crown Signia, Grand Highlander, Highlander, RAV4, RAV4 Prime, Sienna, Venza Image
Thermostat Housing
16031-25040
Toyota Toyota
Notes: PARTS: Part has related component that cannot be reused/reinstalled; o-ring.
MSRP $60.20
$40.89
MSRP $60.20
$40.89
20
1632625010 - Cooling System: Thermostat Housing O-Ring for Toyota: Avalon, Camry, Crown, Crown Signia, Grand Highlander, Highlander, RAV4, RAV4 Prime, Sienna, Venza Image
Thermostat Gasket
16326-25010
Toyota Toyota
Notes: PARTS: Part included with thermostat housing. Part cannot be reused/reinstalled.
MSRP $6.47
$5.06
MSRP $6.47
$5.06
21
16470F0020 - Cooling System: Reservoir for Toyota: Crown, Crown Signia, RAV4, RAV4 Prime, Venza Image
Expansion Tank
16470-F0020
Toyota Toyota
Description: Local built. Without hybrid, reservoir & hoses. Venza. Plug-in, reservoir & hoses. RAV4 Prime. 2.5L. 2.4L, main. Crown Signia.
MSRP $113.77
$75.23
MSRP $113.77
$75.23
22
90119A0394 - Cooling System: Reservoir Bolt for Toyota: 4Runner, Avalon, bZ4X, Corolla, Corolla Cross, Crown, Crown Signia, Grand Highlander, Highlander, Land Cruiser, Mirai, Prius, Prius Prime, RAV4, RAV4 Prime, Sequoia, Sienna, Tacoma, Tundra, Venza Image
Engine Coolant Reservoir Bolt
90119-A0394
Toyota Toyota
MSRP $1.15
$1.04
MSRP $1.15
$1.04
23
90178A0122 - Cooling System: Reservoir Nut for Toyota: 4Runner, bZ4X, Crown, Crown Signia, Grand Highlander, Highlander, Mirai, RAV4, RAV4 Prime, Sequoia, Sienna, Tacoma, Tundra, Venza Image
Radiator Shutter Assembly Nut
90178-A0122
Toyota Toyota
MSRP $1.15
$1.04
MSRP $1.15
$1.04
24
1628325070 - Cooling System: Overflow Hose for Toyota: RAV4, RAV4 Prime Image
Overflow Hose
16283-25070
Toyota Toyota
Description: Plug-in, reservoir & hoses.
MSRP $17.11
$11.94
MSRP $17.11
$11.94
25
9046611004 - Cooling System: Overflow Hose Clip for Toyota: RAV4, RAV4 Prime Image
Overflow Hose Clip
90466-11004
Toyota Toyota
Description: Without hybrid, reservoir & hoses. Plug-in, reservoir & hoses.
MSRP $2.32
$1.81
MSRP $2.32
$1.81
26
164710D010 - Cooling System: Reservoir Cap for Scion: xA, xB | Toyota: Corolla, Crown, Crown Signia, Echo, Matrix, Prius C, RAV4, RAV4 Prime, Venza Image
Reservoir Cap
16471-0D010
Toyota Toyota
Notes: PARTS: Part included with reservoir.
Description: Without hybrid, reservoir & hoses, japan built. Prius C. Venza. Plug-in, reservoir & hoses. RAV4 Prime. Expansion tank cap. 2.5L. 2.4L, main. Crown Signia.
MSRP $3.64
$2.85
MSRP $3.64
$2.85

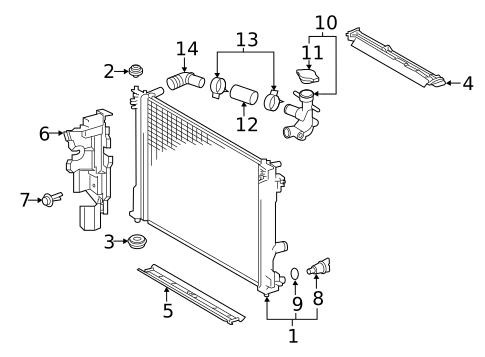

No.
Part # / Description / Price
Price
1
1640031690 - Cooling System: Radiator Assembly for Toyota: RAV4, RAV4 Prime Image
Radiator Assembly
16400-31690
Toyota Toyota
Description: Plug-in, radiator & mounting. RAV4 Prime.
Not For Sale
Not For Sale
2
16523F0020 - Cooling System: Radiator Assembly Upper Insulator for Toyota: Avalon, Camry, Crown, Crown Signia, Grand Highlander, Highlander, Mirai, RAV4, RAV4 Prime, Sienna, Venza Image
Radiator Upper Insulator
16523-F0020
Toyota Toyota
Description: Without hybrid, radiator & mounting. 2.5L. 3.5L. Plug-in, radiator & mounting. 2.4L hybrid. 2.4L, main. Engine Cooling.
MSRP $12.45
$8.69
MSRP $12.45
$8.69
3
165350H030 - Cooling System: Radiator Assembly Lower Insulator for Scion: tC | Toyota: Camry, Crown, Crown Signia, Grand Highlander, Highlander, RAV4, RAV4 Prime, Sienna, Venza Image
Radiator Insulator (Lower)
16535-0H030
Toyota Toyota
Description: Fits Camry , Highlander, RAV4, RAV4 Prime, Sienna, TC, Venza 2.4L. 3.5L. 2.5L. 2.7L, us built. 2.7L, japan built. 2021, radiator & mounting. 2019-20, radiator & mounting.
MSRP $13.79
$9.62
MSRP $13.79
$9.62
4
16594F0080 - Cooling System: Upper Guide for Toyota: Crown, Crown Signia, RAV4, RAV4 Prime, Venza Image
Upper Guide
16594-F0080
Toyota Toyota
Description: Without hybrid, radiator & mounting. Plug-in, radiator & mounting. Upper, 2.4L.
MSRP $44.06
$30.73
MSRP $44.06
$30.73
5
16592F0040 - Cooling System: Lower Guide for Toyota: RAV4, RAV4 Prime, Venza Image
Air Guide
16592-F0040
Toyota Toyota
Description: Lower. Plug-in, radiator & mounting.
MSRP $82.32
$55.92
MSRP $82.32
$55.92
6
1659325021 - Cooling System: Air Guide for Toyota: RAV4, RAV4 Prime Image
Air Guide
16593-25021
Toyota Toyota
Positions: Right
Description: Plug-in, radiator & mounting.
MSRP $72.01
$48.92
MSRP $72.01
$48.92
6
1659525021 - Cooling System: Air Guide for Toyota: RAV4, RAV4 Prime Image
Air Guide
16595-25021
Toyota Toyota
Positions: Left
Description: Plug-in, radiator & mounting.
MSRP $65.85
$44.74
MSRP $65.85
$44.74
7
9046707214 - Cooling System: Air Guide Clip for Scion: iQ, tC | Toyota: Avalon, bZ4X, C-HR, Camry, Corolla, Corolla Cross, GR Corolla, Grand Highlander, Highlander, Land Cruiser, Mirai, Prius, Prius AWD-e, Prius C, Prius Prime, RAV4, RAV4 Prime, Sequoia, Sienna, Tacoma, Tundra, Venza, Yaris Image
Fender Liner Clip
90467-07214
Toyota Toyota
Positions: Left
MSRP $1.98
$1.79
MSRP $1.98
$1.79
8
1641721280 - Cooling System: Drain Plug for Scion: iM, iQ, tC, xB, xD | Toyota: 4Runner, Avalon, C-HR, Camry, Corolla, Corolla Cross, Corolla iM, Crown, Crown Signia, GR Corolla, Grand Highlander, Highlander, Matrix, Mirai, Prius, Prius AWD-e, Prius C, Prius Plug-In, Prius Prime, Prius V, RAV4, RAV4 Prime, Sienna, Venza, Yaris Image
Radiator Assembly Drain Plug
16417-21280
Toyota Toyota
Notes: PARTS: Part included with radiator assembly.
MSRP $7.64
$5.97
MSRP $7.64
$5.97
9
1649221050 - Cooling System: Drain Plug O-Ring for Scion: iM, iQ, tC, xA, xB, xD | Toyota: 4Runner, Avalon, C-HR, Camry, Celica, Corolla, Corolla Cross, Corolla iM, Crown, Crown Signia, Echo, FJ Cruiser, GR Corolla, Highlander, Matrix, Mirai, MR2 Spyder, Prius, Prius AWD-e, Prius C, Prius Plug-In, Prius Prime, Prius V, RAV4, RAV4 Prime, Sequoia, Sienna, Tundra, Venza, Yaris Image
Radiator Drain Plug Gasket
16492-21050
Toyota Toyota
Notes: PARTS: Part included with radiator assembly.
MSRP $4.31
$3.37
MSRP $4.31
$3.37
10
1689725041 - Cooling System: Filler Neck for Toyota: RAV4, RAV4 Prime Image
Filler Neck
16897-25041
Toyota Toyota
Description: Plug-in, radiator & mounting.
MSRP $22.44
$15.65
MSRP $22.44
$15.65
12
1628125040 - Cooling System: By-Pass Hose for Toyota: RAV4, RAV4 Prime Image
By-Pass Hose
16281-25040
Toyota Toyota
Description: Plug-in, radiator & mounting.
MSRP $11.13
$7.76
MSRP $11.13
$7.76
13
9046628001 - Cooling System: By-Pass Hose Clamp for Toyota: 4Runner, Corolla, Corolla Cross, RAV4, RAV4 Prime, Tacoma Image
Engine Coolant Reservoir Overflow Hose Clamp
90466-28001
Toyota Toyota
Description: 2.0L hybrid. Plug-in, radiator & mounting. Sedan, 2.0L.
MSRP $6.47
$5.06
MSRP $6.47
$5.06
14
1629125020 - Cooling System: Connector Hose for Toyota: RAV4, RAV4 Prime Image
Connector Hose
16291-25020
Toyota Toyota
Description: Plug-in, radiator & mounting.
MSRP $23.77
$16.58
MSRP $23.77
$16.58
Radiator & Components for 2024 Toyota RAV4 Prime #2
No.
Part # / Description / Price
Price
1
1640031690 - Cooling System: Radiator for Toyota: RAV4, RAV4 Prime Image
Radiator Assembly
16400-31690
Toyota Toyota
Description: Plug-in, radiator & mounting. RAV4 Prime.
Not For Sale
Not For Sale
2
1640136030 - Cooling System: Radiator Cap for Toyota: Avalon, Camry, Corolla, Corolla Cross, Crown, Crown Signia, Grand Highlander, Highlander, Prius, Prius AWD-e, Prius Prime, RAV4, RAV4 Prime, Sienna, Venza Image
Cap
16401-36030
Toyota Toyota
MSRP $23.77
$16.58
MSRP $23.77
$16.58
3
16572F0100 - Cooling System: Upper Hose for Toyota: RAV4, RAV4 Prime, Venza Image
Upper Hose
16572-F0100
Toyota Toyota
Description: Local built. To 12/2021. Engine Cooling. Without hybrid. Awd. RAV4 Prime. Exc.Japan Built. Venza. To 12/21. Plug-in, reservoir & hoses.
MSRP $33.58
$23.42
MSRP $33.58
$23.42
4
1657125120 - Cooling System: Lower Hose for Toyota: RAV4, RAV4 Prime Image
Lower Hose
16571-25120
Toyota Toyota
Description: RAV4 Prime. Plug-in, reservoir & hoses.
MSRP $41.07
$28.64
MSRP $41.07
$28.64
5
16470F0020 - Cooling System: Expansion Tank for Toyota: Crown, Crown Signia, RAV4, RAV4 Prime, Venza Image
Expansion Tank
16470-F0020
Toyota Toyota
Notes: Includes: Expansion Tank Cap.
Description: Local built. Without hybrid, reservoir & hoses. Venza. Plug-in, reservoir & hoses. RAV4 Prime. 2.5L. 2.4L, main. Crown Signia.
MSRP $113.77
$75.23
MSRP $113.77
$75.23
6
164710D010 - Cooling System: Cap for Scion: xA, xB | Toyota: Corolla, Crown, Crown Signia, Echo, Matrix, Prius C, RAV4, RAV4 Prime, Venza Image
Reservoir Cap
16471-0D010
Toyota Toyota
Description: Without hybrid, reservoir & hoses, japan built. Prius C. Venza. Plug-in, reservoir & hoses. RAV4 Prime. Expansion tank cap. 2.5L. 2.4L, main. Crown Signia.
MSRP $3.64
$2.85
MSRP $3.64
$2.85
7
1603125040 - Cooling System: Thermostat Housing for Toyota: Avalon, Camry, Crown, Crown Signia, Grand Highlander, Highlander, RAV4, RAV4 Prime, Sienna, Venza Image
Thermostat Housing
16031-25040
Toyota Toyota
Notes: Includes: Thermostat & Gasket.
MSRP $60.20
$40.89
MSRP $60.20
$40.89
8
1632625010 - Cooling System: Thermostat Gasket for Toyota: Avalon, Camry, Crown, Crown Signia, Grand Highlander, Highlander, RAV4, RAV4 Prime, Sienna, Venza Image
Thermostat Gasket
16326-25010
Toyota Toyota
MSRP $6.47
$5.06
MSRP $6.47
$5.06
9
1633125030 - Cooling System: Water Outlet for Toyota: Avalon, Camry, Crown, Crown Signia, Grand Highlander, Highlander, RAV4, RAV4 Prime, Sienna, Venza Image
Water Outlet
16331-25030
Toyota Toyota
MSRP $67.69
$45.98
MSRP $67.69
$45.98
10
G90400R040 - Cooling System: Water Pump for Toyota: Crown, Crown Signia, RAV4, RAV4 Prime, Venza Image
Water Pump
G9040-0R040
Toyota Toyota
Description: Inverter water pump assy. From 12/2021. Local built. Venza. From 12/21. Crown. 2.5l. Plug-in. RAV4 Prime. Crown Signia.
MSRP $697.85
$461.45
MSRP $697.85
$461.45
11
1632525010 - Cooling System: Gasket for Toyota: 4Runner, Avalon, Camry, Corolla, Corolla Cross, Crown, Crown Signia, Grand Highlander, Highlander, Land Cruiser, Prius, Prius Prime, RAV4, RAV4 Prime, Sienna, Tacoma, Venza Image
Engine Water Pump Housing Gasket
16325-25010
Toyota Toyota
MSRP $5.81
$4.54
MSRP $5.81
$4.54
12
1636025030 - Cooling System: Fan Module for Toyota: Crown Signia, RAV4, RAV4 Prime Image
Fan Assembly
16360-25030
Toyota Toyota
Notes: Includes: Cooling Fan Blade, Motor & Shroud.
Description: With hybrid. Japan built. From 12/2021. Plug-in. RAV4 Prime. Crown Signia.
MSRP $1,470.95
$972.67
MSRP $1,470.95
$972.67

Related Parts

Part # / Description / Price
Price
90119A0394 - Cooling System: Filler Neck Bolt for Toyota: 4Runner, Avalon, bZ4X, Corolla, Corolla Cross, Crown, Crown Signia, Grand Highlander, Highlander, Land Cruiser, Mirai, Prius, Prius Prime, RAV4, RAV4 Prime, Sequoia, Sienna, Tacoma, Tundra, Venza Image
Engine Coolant Reservoir Bolt
90119-A0394
Toyota Toyota
MSRP $1.15
$1.04
MSRP $1.15
$1.04
1629625060 - Cooling System: Engine Coolant Hose for Toyota: Avalon, Camry, Crown, Crown Signia, Grand Highlander, Highlander, RAV4, RAV4 Prime Image
Hose
16296-25060
Toyota Toyota
Description: Cooler. EGR Valve to Pipe. Toward Throttle Body. Japan Built. From 08/2021. #1.
MSRP $9.63
$7.53
MSRP $9.63
$7.53
9955510200 - Cooling System: Engine Coolant Hose for Toyota: Avalon, Camry, Celica, Crown, Crown Signia, Echo, Grand Highlander, Highlander, Land Cruiser, RAV4, RAV4 Prime Image
Engine Coolant Hose
99555-10200
Toyota Toyota
Description: For Water Bypass Pipe No. 4; Water; Water Bypass; Water Bypass, No. 2; Water Bypass, No. 4; Water, No. 3(For IDEL Speed Control Valve). Fits Corolla , Echo, Land Cruiser 1.8L. Short. 1993-94, bypass.
MSRP $8.14
$6.36
MSRP $8.14
$6.36
